호일-와운드 변압기용 OVDT 호일 절연지

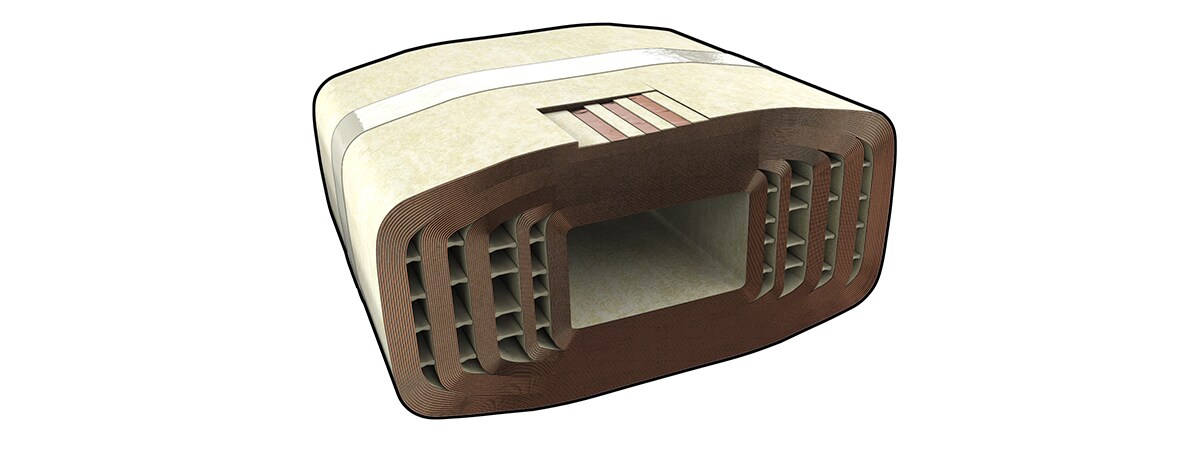

아래 이미지에 표시된 부분에 마우스 커서를 올려 3M 제품 사용이 가능한 영역을 확인해 보세요

  • OVDT Foil Flex Insulation for Foil-Wound Transformers

외부 랩핑 / 윈도우 절연 / 접지 절연

권선간 절연

턴 절연

코어 튜브 / 접지 절연

고정용 테이프

호일 레이어

ID Select Thermal Class Select Required Insulation Thickness Recommended 3M™ Flexible Insulation Product Transformer Size & Overload Capability/Insulation Thermal Conductivity Winding Process Requirements/Insulation Mechanical Strength High Reliability/Insulation Long Term Voltage Endurance Price
1 200°C Max 2 to 20 mil TufQUIN* Better Better Good Best
2 220°C Max 5 to 60 mil, 1/32" to 1/8" CeQUINBORD Better Good Good Best
3 220°C Max 5 to 60 mil, 1/32" to 1/8" CeQUIN* Better Good Good Best
4 220°C Max 3 to 15 mil ThermaVolt* Best Better Best Better
5 220°C Max 3 to 30 mil ThermaVolt AR Best Best Better Good
