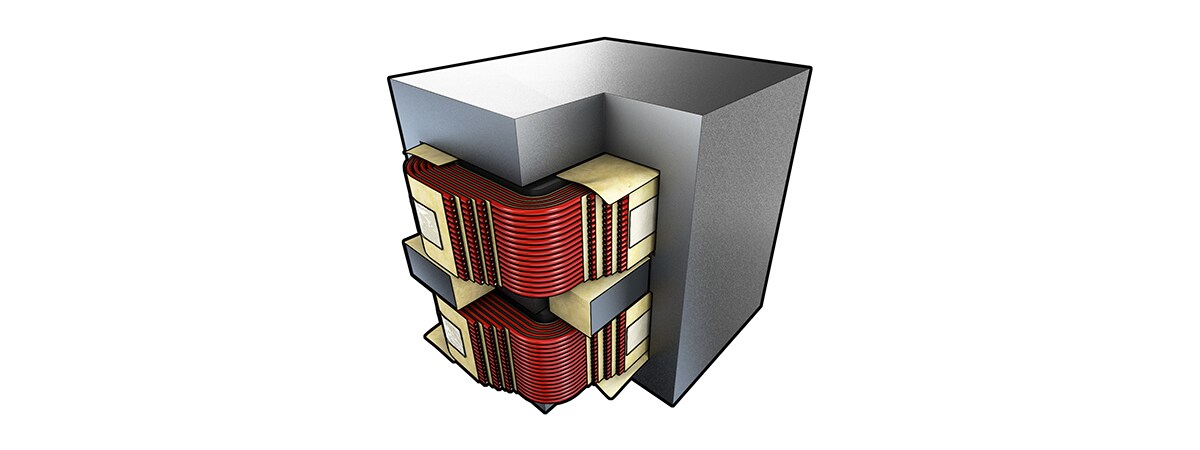

OVDT Magnet Wire Flex Insulation for HID and Microwave Transformers
| ID | Select Thermal Class | Select Required Insulation Thickness | Recommended 3M™ Flexible Insulation Product | Transformer Size & Overload Capability/Insulation Thermal Conductivity | Winding Process Requirements/Insulation Mechanical Strength | High Reliability/Insulation Long Term Voltage Endurance | Price |
|---|---|---|---|---|---|---|---|
| 1 | 200°C Max | 2 to 20 mil | TufQUIN* | Better | Prefer Laminate | Good | Best |
| 2 | 200°C Max | 5 to 60 mil, 1/32" to 1/8 | CeQUINBORD | Better | Prefer Laminate or BORD | Good | Best |
| 3 | 200°C Max | 6 to 60 mil, 1/32" to 1/8 | CeQUIN* | Better | Prefer Laminate or BORD | Good | Best |
| 4 | 200°C Max | 3 to 15 mil | ThermaVolt* | Best | Prefer Laminate | Best | Better |
| 5 | 200°C Max | 3 to 30 mil | ThermaVolt AR | Best | Best | Better | Good |
OVDT & Oil Filled Transformer Tape for HID and Microwave Transformers
| ID | Select Thermal Class | Recommended 3M™ Insulating Tape Backing | Transformer Size & Overload Capability/Insulation Thermal Conductivity | Dielectric Breakdown | Winding Process Requirements/Insulation Mechanical Strength | Resin Absorption | Tape Total Thickness Requirements |
|---|---|---|---|---|---|---|---|
| 1 | 200°C Max | Glass Cloth | Better | 3,000 V | Better | Best | Good |
| 2 | 130°C Max | Filament | Best | 5,500 V, 1076, 3,500 V | Best | Best | Good |
| 3 | 130°C Max | Composite | Best | 5,500 V | Good | Better | Better |
| 4 | 130°C Max | Polyester | Best | 1 mil 5,500V, 2 mil 7,000V | Good | Good | Best |
